4 channel receiver with 12v control

4-channel receiver (4 relay outputs) + 1 4-button control

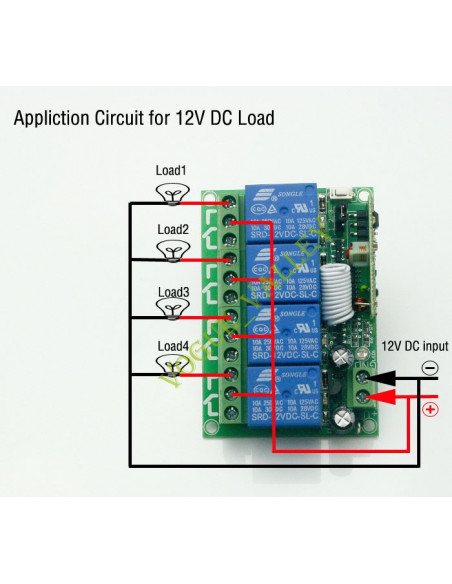

Operating voltage: 12VDC
3 working modes: Fixed Bistable / Momentary / Latch

• Fixed, Bistable (Switch Type): (Press Button A> ON; Press A again -> OFF)
• Momentary: (Press and hold button A -> ON; Release-> OFF)
• Latch: When you press a button, for example button A, output A is activated, to deactivate it, press another button, for example C, and at the same time output C is activated.

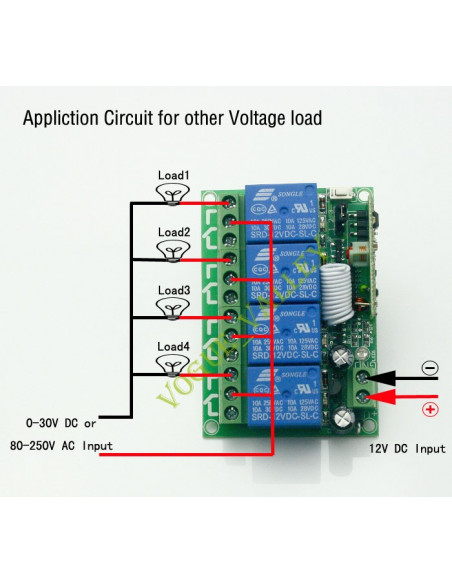

Relay: 10A 125VAC / 250VAC 10A / 10A 30VDC / 28VDC 10A
Size (LxWxH): 67mm x 47mm x17mm
Radio frequency: 315MHz
Operating voltage: 12VDC (For example with a 12v v23ga battery)
Transmission distance: maximum 100m
Compatible with 315mhz controllers with 2262, 2260 or 1527 chip

Operation :

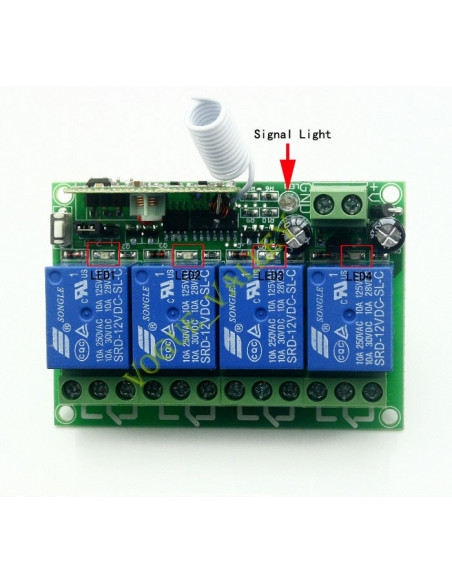

• How to copy a new remote: Press and release the only button on the receiver. The red LED flashes and then press the remote control that we want to record.
• How to delete all the recorded commands : press the only button on the receiver for 3 seconds. When the led turns off for the first time, the memory will be clean.

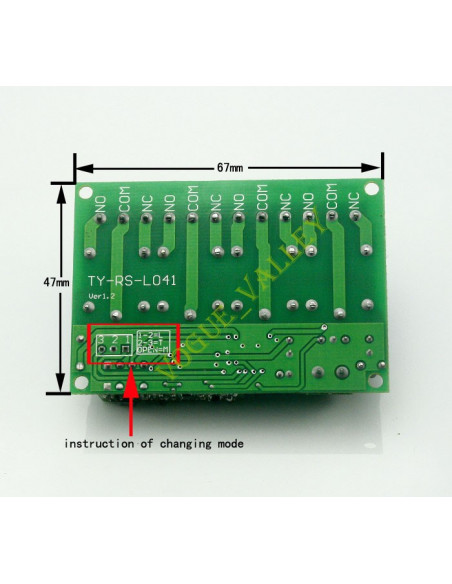

• How to change the working mode (fixed, momentary or latch): In the receiver there is a jumper. Put the jumper in position 2-3 to work in fixed bistable. Put the jumper in position 1-2 to work in Latch. To put working in momentary, remove the jumper.

Note, you can change the working mode, but it will not work in such mode until the power is removed and turned on again.

Note, the color of the components, the design of the control, or the order of the components of the electronic board may vary slightly.
